iM1283a eDP (embedded Display Port/5.4G) Simplified Signal Generator
ISX Developed Products
Flat Panel Display Inspection Device
Present the best inspection solution to promote efficiency and precision of FPD production such as LCD, OLED etc.

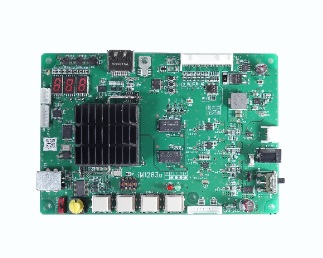

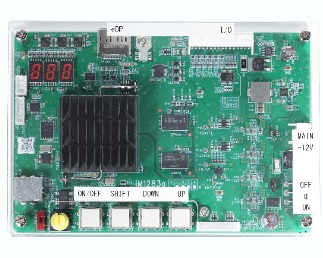

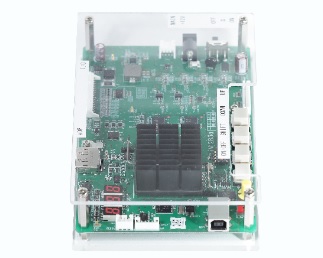

iM1283a eDP (embedded Display Port/5.4G) Simplified Signal Generator
iM1283a is a eDP 5.4G output simplified signal generator which is reasonable and quickly installable. This is the most appropriate lineup in the case of considering introduction at low cost.
Editable Pattern and Timing
According to the test environment, pattern creation and timing setting are freely available by attached editor software. iM1283a can be used shortly in a saving space for its simple operation and compact design. Supporting 4K2K/60Hz module.
Specification
8 bit output corresponding 4-lane DisplayPort 5.4Gbps supported
eDP setting, RGB 1.62/2.7/5.4/2.16/2.43/4.32Gbps
Available to supply 12V to the outside as auxiliary power output
Patterns and timings editable
Programmable I2C over AUX sequence
Variable eDP signal level and waveform emphsis level by pattern edit
Full resolution: 4096 x 4096
Signal control by GPIO
Operating Temperature
0 to 60 degree C
*Contents are subject to change without any notice.
